High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades

সাক্ষ্যদান
চীন Jiangsu New Heyi Machinery Co., Ltd সার্টিফিকেশন
চীন Jiangsu New Heyi Machinery Co., Ltd সার্টিফিকেশন
ক্রেতার পর্যালোচনা
Good service, good quality

—— AMMA - Russia

Very good factory

—— Peter-America

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

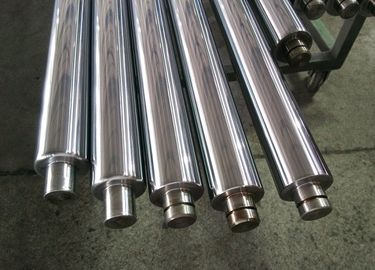

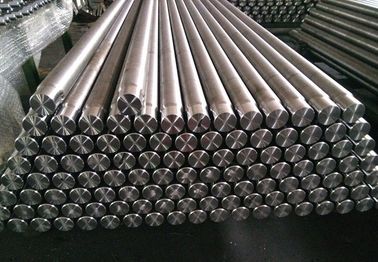

High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades

High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades
High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades

বড় ইমেজ :  High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades

পণ্যের বিবরণ:

উৎপত্তি স্থল: China
পরিচিতিমুলক নাম: HY
সাক্ষ্যদান: ISO9001:2008

প্রদান:

ন্যূনতম চাহিদার পরিমাণ: 1 tons
মূল্য: Negotiation
প্যাকেজিং বিবরণ: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
ডেলিভারি সময়: 30days
পরিশোধের শর্ত: T/T, L/C
যোগানের ক্ষমতা: 30tons a day
বিস্তারিত পণ্যের বর্ণনা
Product: Micro alloy steel piston rod Supply condition: Hard chrome plating
Hard chrome thickness: 20 - 30 micron Tolerance on Dia.: ISO f7
Ovality: Half of the tolerance ISO f7 Straightness: Not more than 0.2MM/M
লক্ষণীয় করা:

chrome plated piston rod

,

chrome plated steel rod



High Strength Hard Chrome Plated Rod Micro Alloy Steel Grades



Product Description


1. The micro alloy steel products are developed on the basis of proprietary technology of the control

    rolling and cooling for substituting quenched and tempered piston rods with a variety of mechanical

    performance requirements.

2. Micro alloy steel rod mainly used in mechanical manufacturing for the directly turning part of shaft
   and rod, ect. For instance, it is used for manufacturing injection molding machine draglink, engineering

    machinery push rod and hydraulic prop with the feature that hardened and tempered steel machanical

    property needless quenched and tempered process
3. The mechanical property is correspond to quenched and tempered piston rods or over them and

    very uniform on the whole cross section.
4. Hardness is more uniform on the whole cross section than quenched and tempered piston rods

5. Turning performance is commensurate to quenched and tempered piston rods or be superior to them.
6. Micro structure: Ferrite and pearlite with fine and uniform grain size.
7. The processing period is shortened, and the productivity is enhanced and the occupied capital is
    reduced..
8. The processing cost is low, there is no need of quenched and tempered process and the second
    turning but the mechanical property is correspond to quenched and tempered piston rod





Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material

C%

Mn%

Si%

S%

P%

V%

Ni

Cr%

Mo

Cu

HY4700

0.38-0.45

1.20 ~1.60

0.30~0.50

≤0.035

≤0.020

0.05~0.15

≤0.25

0.10~0.20

≤0.15

0.25

HY4520

0.40 ~0.48

0.80 ~1.40

0.15 ~0.35

≤0.035

≤0.035

≤0.15

≤0.25

≤0.25

≤0.15

≤0.25



3. MECHANICAL PROPERTIES


Material

MECHANICAL PROPERTIES

Surface hardness(HBW)

 Rm(MPa)

Rel(MPa)

A%

Z%

KU2(J)



HY4700

Φ35 - Φ100

900 - 1100

≥650

≥16

≥35

≥39

270-340

>Φ100 - Φ140

850 - 950

≥600

≥16

≥35

≥39

270-340

HY4520

Φ40 - Φ100

750 - 900

≥520

≥19

≥40

≥39

230-290

>Φ100~Φ140

750 - 900

≥520

≥17

≥35

≥39

230-290



















4. SUPPLY CONDITION
    Ground  and  chrome plated
5. CHROME THICKNESS
     20 to 30 micron
6 .SURFACE HARDNESS
     850-1150HV (vickers 100g)

7. TOLERANCES ON DIA
     ISO f7 on the diameter
8.OVALITY
    Half of the tolerance ISO f7
9. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micron

10. STRAIGHTNESS
   ≤0.2MM/M

11. CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-120hours
     Results evaluation according to ISO 4540 RATING 7-10

12.POROSITY
      Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

13. WELDABILITY
     Good

14. COHESION

     No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

    and cooling in water)

15. CERTIFICATE
      All certificate related with material heat treatment and plating is required

16. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
